Official PYQ · 2021Set 1 · Q31Sequential CircuitsMCQ2 marks

GATE EC 2021 Set 1 Q31 — Sequential Circuits

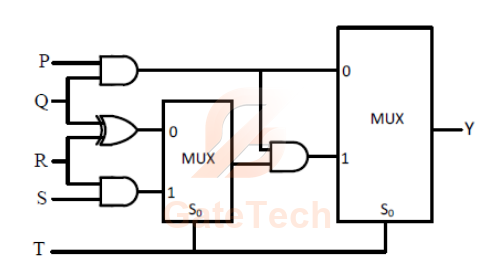

The propagation delays of the $\text{XOR}$ gate, $\text{AND}$ gate and multiplexer $\text{(MUX)}$ in the circuit shown in the figure are $4\:ns$ , $2\:ns$ and $1\:ns$ , respectively.

If all the inputs $\text{P, Q, R, S and T}$ are applied simultaneously and held constant, the maximum propagation delay of the circuit is

View answer

Answer: C

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.
