GATE EC 2025 Set 1 Q52 — Sequential Circuits

Explain with AI

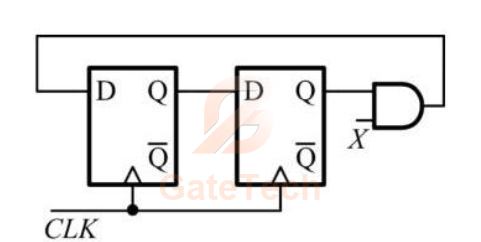

In the circuit shown below, the AND\mathrm{AND} gate has a propagation delay of 1 ns1 \: \mathrm{ ns}. The edge-triggered flip-flops have a set-up time of 2 ns2 \: \mathrm{ ns}, a hold-time of 0 ns0 \: \mathrm{ns}, and a clock-to-QQ delay of 22 ns.

The maximum clock frequency (in MHz\mathrm{MHz}, rounded off to the nearest integer) such that there are no setup violations is ______\_\_\_\_\_\_



View answer

Answer: 200:200

Worked explanation not available yet.
