Official PYQ · 2020Set 1 · Q50Sequential CircuitsNAT2 marks

GATE EC 2020 Set 1 Q50 — Sequential Circuits

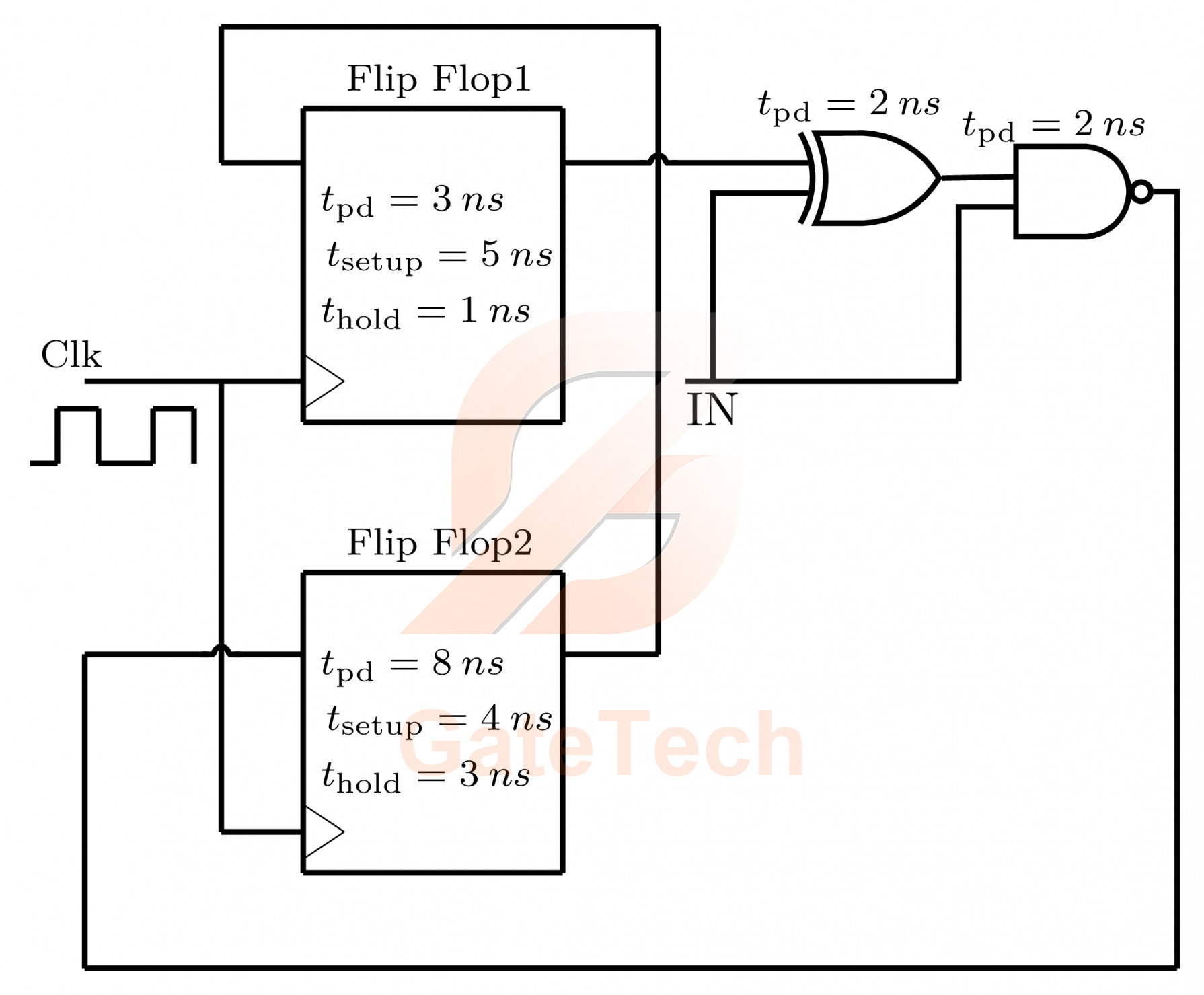

For the components in the sequential circuit shown below, $t_{pd}$ is the propagation delay, $t_{\text{setup}}$ is the setup-time, and $t_{\text{hold}}$ is the hold time. The maximum clock frequency (rounded off to the nearest integer), at which the given circuit can operate reliably, is _________ $\text{MHz}$ .

View answer

Answer: 76:77

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction

GATE EC · 2026Sequential Circuits
A binary ripple counter is designed to count $(0)_{10}$ to $(64)_{10}$ . Which of the following is/are the number of flip-flops required to design the counter?
MSQ · 1 mark
GATE EC · 2026Sequential Circuits
The negative edge triggered JK flip-flop in the Figure has J and K inputs tied to Logic High and a square wave of $10$ cycles/second is applied to its clock (C) input. The frequency of the output Q (in cycles/second) is $\_\_\_\_$ . (rounded off to two decimal places)
NAT · 1 mark
GATE EC · 2026Sequential Circuits
A shift-left Shift Register (SR) and a D flip-flop are connected to a synchronized clock as shown in the Figure. Assume that the SR and D flip-flops are initially cleared and the XOR gate has no propagation delay. Which of the following options gives the correct binary representation $\left(b_{7} b_{6} b_{5} b_{4} b_{3} b_{2} b_{1} b_{0}\right)$ of the …
MCQ · 2 marks
GATE EC · 2025Sequential Circuits
A positive-edge-triggered sequential circuit is shown below. There are no timing violations in the circuit. Input $P 0$ is set to logic ' $0$ ' and $P 1$ is set to logic ' $1$ ' at all times. The timing diagram of the inputs $S E L$ and $S$ are also shown below. The sequence of output $Y$ from time $T_{0}$ to $T_{3}$ is _______.
MCQ · 2 marks
GATE EC · 2025Sequential Circuits
In the circuit shown below, the $\mathrm{AND}$ gate has a propagation delay of $1 \: \mathrm{ ns}$ . The edge-triggered flip-flops have a set-up time of $2 \: \mathrm{ ns}$ , a hold-time of $0 \: \mathrm{ns}$ , and a clock-to- $Q$ delay of $2$ ns. The maximum clock frequency (in $\mathrm{MHz}$ , rounded off to the nearest integer) such that there …
NAT · 2 marks
GATE EC · 2024Sequential Circuits
The propagation delay of the $2 \times 1$ MUX shown in the circuit is $10 \mathrm{~ns}$ . Consider the propagation delay of the inverter as $0 \mathrm{~ns}$ . If $\text{S}$ is set to $1$ then the output $\text{Y}$ is $\_\_\_\_\_\_$ .
MCQ · 2 marks
