Official PYQ · 2017Set 2 · Q43Sequential CircuitsNAT2 marks

GATE EC 2017 Set 2 Q43 — Sequential Circuits

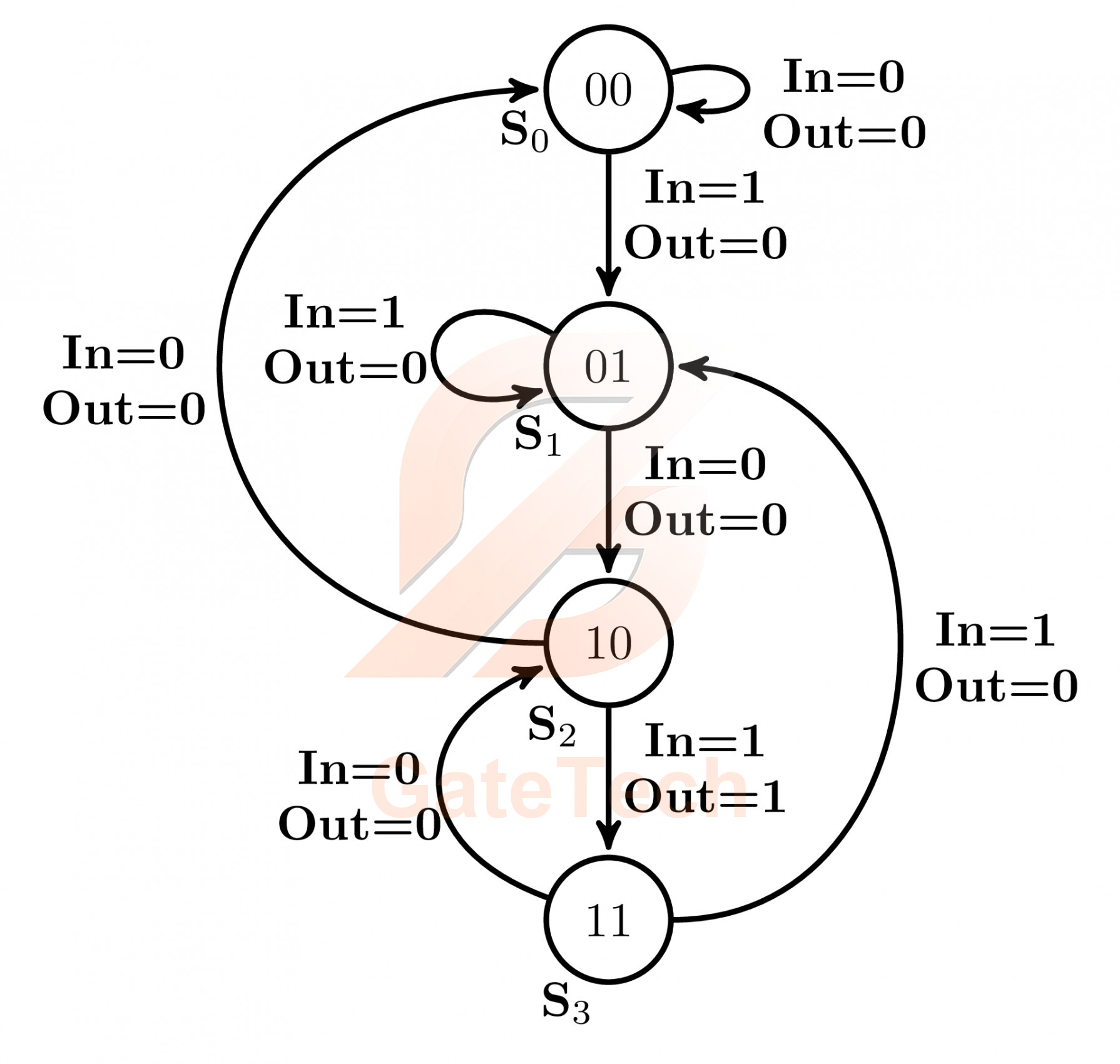

The state diagram of a finite state machine (FSM) designed to detect an overlapping sequence of three bits is shown in the figure. The FSM has an input 'In' and an output 'Out'. The initial state of the FSM is $S_0$ .

If the input sequence is $10101101001101$ , starting with the left-most bit, then the number of times 'Out' will be $1$ is ____________
