GATE EC 2017 Set 1 Q46 — Sequential Circuits

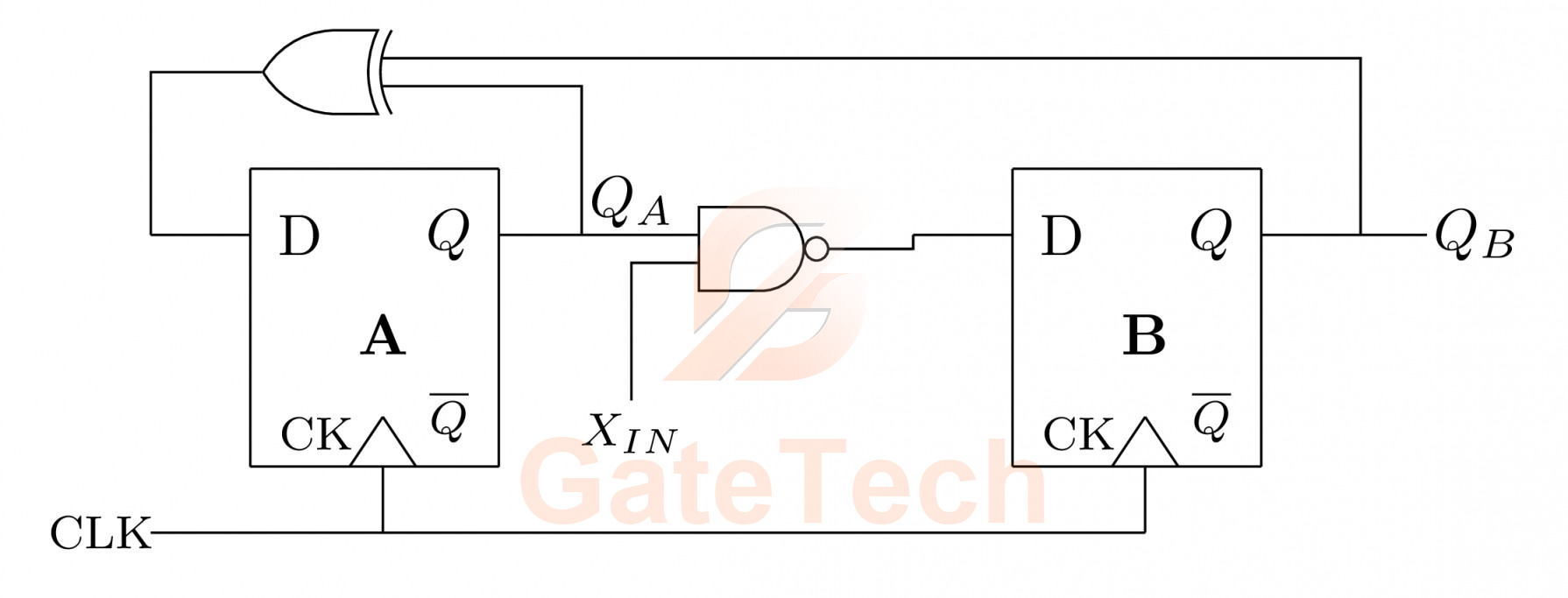

A finite state machine (FSM) is implemented using the D flip-flop A and B, and logic gates, as shown in the figure below. The four possible states of the FSM are $Q_{A}Q_{B}=00,01,10$ and $11$.

Assume that $X_{IN}$ is held at a constant logic level throughout the operation of the FSM. When the FSM is initialized to the state $Q_{A}Q_{B}=00$ and clocked, after a few clock cycles, it starts cycling through
