Official PYQ · 2017Set 1 · Q44Sequential CircuitsNAT2 marks

GATE EC 2017 Set 1 Q44 — Sequential Circuits

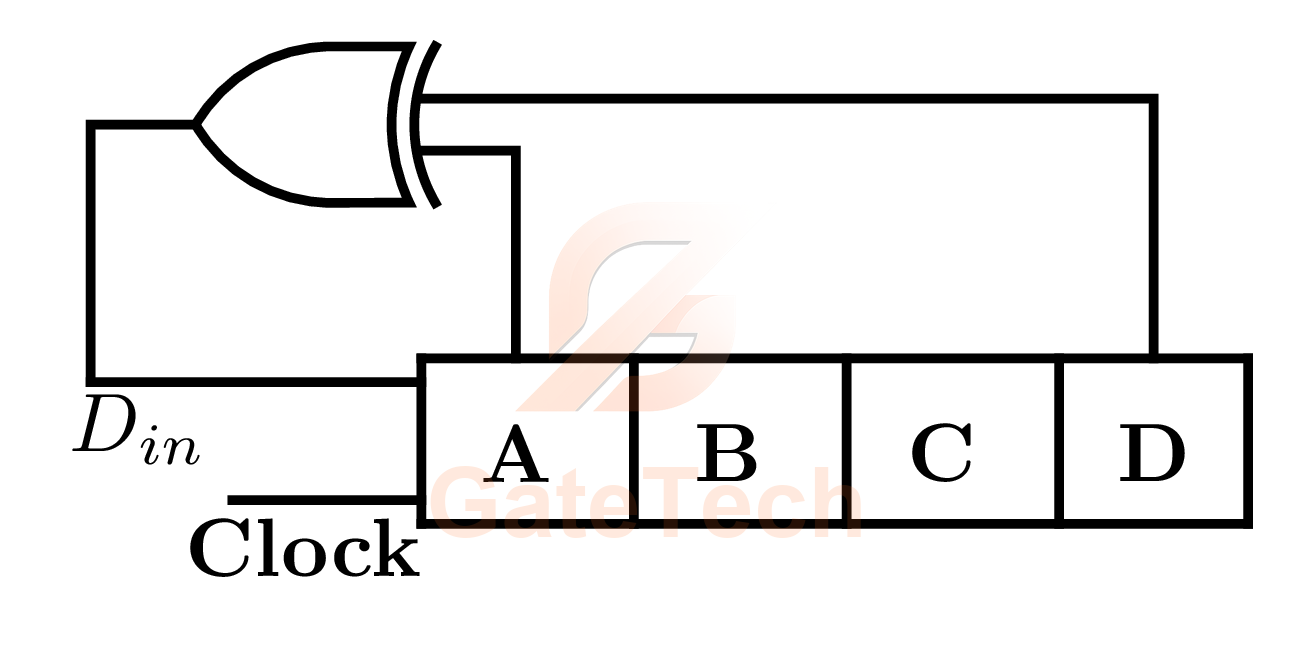

A $4$ -bit shift register circuit configured for right-shift operation, i.e. $D_{in}\rightarrow A,A\rightarrow B,B\rightarrow C,C\rightarrow D$ , is shown. If the present state of the shift register is $ABCD=1101$ , the number of clock cycles required to reach the state $ABCD=1111$ is _________.

View answer

Answer: 10.0:10.0

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
