GATE EC 2017 Set 1 Q17 — Sequential Circuits

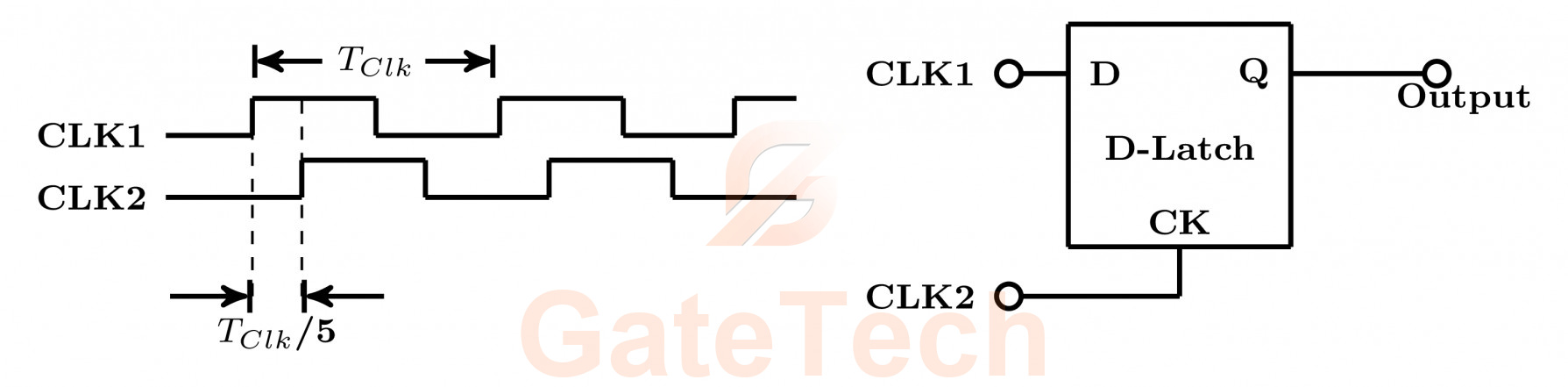

Consider the D-Latch shown in the figure, which is transparent when its clock input $CK$ is high and has zero propagation delay. In the figure , the clock signal $CLK$ has a $50 \%$ duty cycle and $CLK2$ is a one-fifth period delayed version of $CLK1$ .The duty cycle at the output of the latch in percentage is _________.

View answer

Answer: 29.9:30.1

Worked explanation not available yet.
