Official PYQ · 2005Q62Combinational CircuitsMCQ1 mark

GATE CS 2005 Q62 — Combinational Circuits

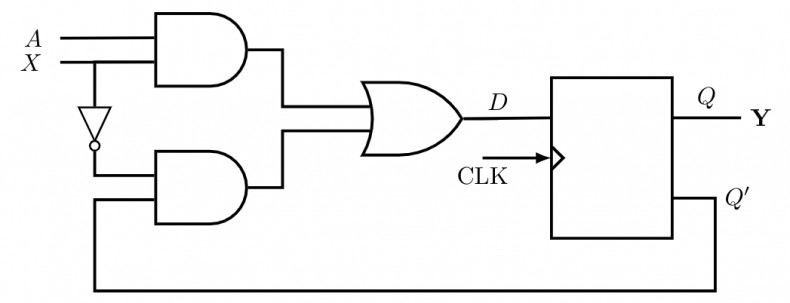

Consider the following circuit involving a positive edge triggered D FF.

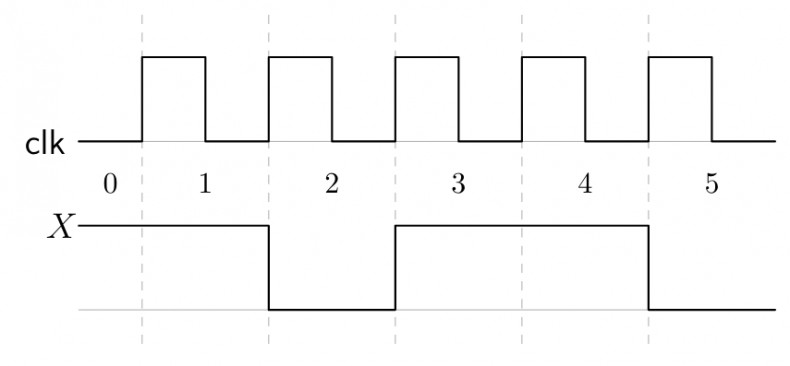

Consider the following timing diagram. Let $A_{i}$ represents the logic level on the line $A$ in the $i$ -th clock period.

Let $A'$ represent the complement of $A$ . The correct output sequence on $Y$ over the clock periods $1$ through $5$ is:

View answer

Answer: A

Worked explanation not available yet.
