Official PYQ · 2023Q34Combinational CircuitsMCQ2 marks

GATE CS 2023 Q34 — Combinational Circuits

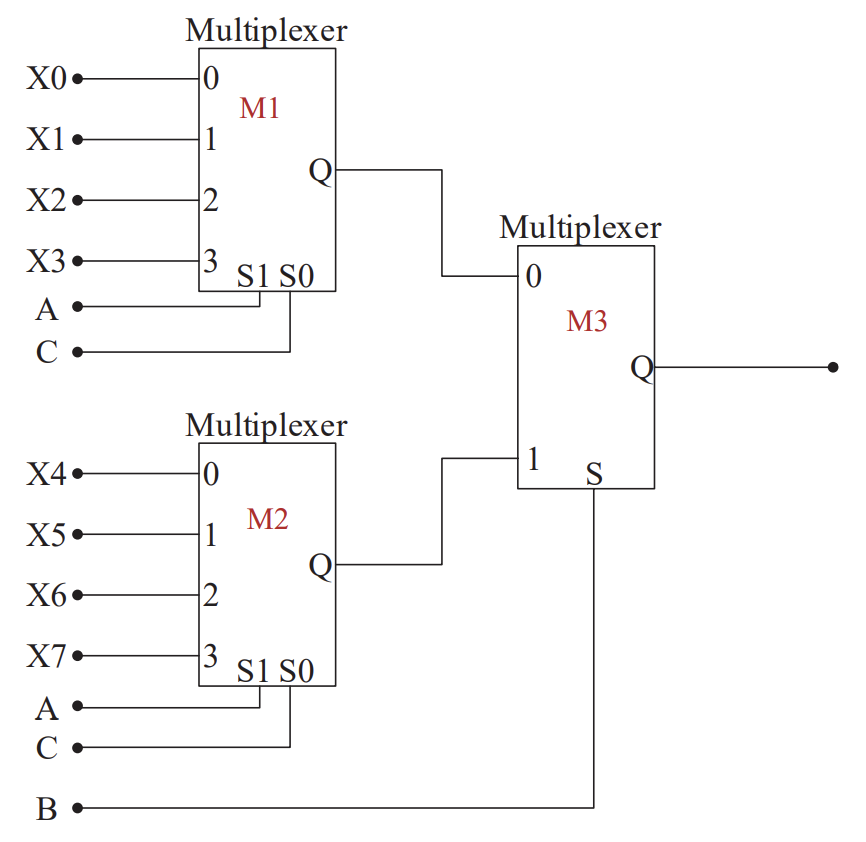

A Boolean digital circuit is composed using two $4$ -input multiplexers $\text{(M1 and M2)}$ and one $2$ -input multiplexer $\text{(M3)}$ as shown in the figure. $\text{X0-X7}$ are the inputs of the multiplexers $\text{M1 and M2}$ and could be connected to either $0$ or $1.$ The select lines of the multiplexers are connected to Boolean variables $\text{A, B and C}$ as shown.

Which one of the following set of values of $\text{(X0, X1, X2, X3, X4, X5, X6, X7)}$ will realise the Boolean function $\overline{\mathrm{A}}+\overline{\mathrm{A}} \cdot \overline{\mathrm{C}}+\mathrm{A} \cdot \overline{\mathrm{B}} \cdot \mathrm{C}?$

View answer

Answer: C

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
