GATE EC 2022 Set 1 Q32 — Op-amp Circuits

Explain with AI

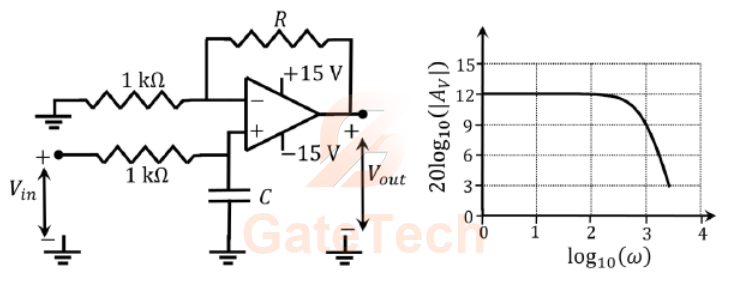

A circuit with an ideal OPAMP\text{OPAMP} is shown. The Bode plot for the magnitude (in dB)\text{(in dB)} of the gain transfer function (AV(jω)=Vout(jω)/Vin(jω))(A_{V} (j \omega) = V_{\text{out}} (j \omega) / V_{\text{in}} (j \omega)) of the circuuit is also provided (here, ω\omega is the angular frequency in rad/s.\text{rad/s}.) The values of RR and CC are ________________.

Choose one option
View answer

Answer: A

Worked explanation not available yet.
