GATE EC 2024 Set 1 Q39 — Op-amp Circuits

Explain with AI

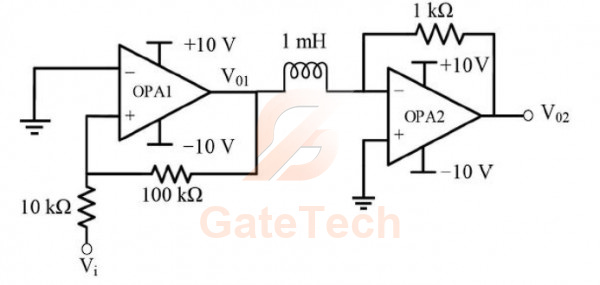

​​​​​The opamps in the circuit shown are ideal, but have saturation voltages of ±10 V\pm 10 \mathrm{~V}.



Assume that the initial inductor current is 0 A0 \mathrm{~A}. The input voltage (Vi)\left(\mathrm{V}_{\mathrm{i}}\right) is a triangular signal with peak voltages of ±2 V\pm 2 \mathrm{~V} and time period of 8μs8 \mu \mathrm{s}. Which one of the following statements is true?



Choose one option
View answer

Answer: D

Worked explanation not available yet.
