GATE EC 2021 Set 1 Q10 — Op-amp Circuits

Explain with AI

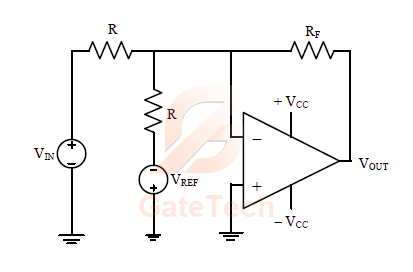

Consider the circuit with an ideal OPAMP\text{OPAMP} shown in the figure.

Assuming ∣VIN∣≪∣VCC∣\left | V_{\text{IN}} \right |\ll \left | V_{\text{CC}} \right | and ∣VREF∣≪∣VCC∣\left | V_{\text{REF}} \right |\ll \left | V_{\text{CC}} \right |, the condition at which VOUTV_{\text{OUT}} equals to zero is

Choose one option
View answer

Answer: A

Worked explanation not available yet.
