GATE EC 2021 Set 1 Q9 — Op-amp Circuits

Explain with AI

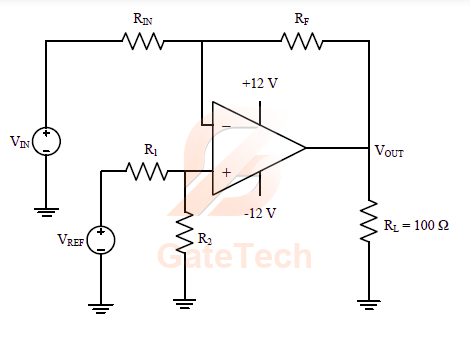

For the circuit with an ideal OPAMP\text{OPAMP} shown in the figure. VREFV_{\text{REF}} is fixed.

If VOUT=1V_{\text{OUT}}=1 volt for VIN−0.1V_{\text{IN}}-0.1 volt and VOUT=6V_{\text{OUT}}=6 volt for VIN=1V_{\text{IN}}=1 volt, where VOUTV_{\text{OUT}} is measured across RLR_{L} connected at the output of this OPAMP\text{OPAMP}, the value of RF/RINR_{F}/R_{\text{IN}} is

Marks were awarded to all candidates for this question. It is not scored as a normal quiz.

View answer

Marks to all

Worked explanation not available yet.
