GATE EC 2021 Set 1 Q8 — BJT and MOSFET Amplifiers

Explain with AI

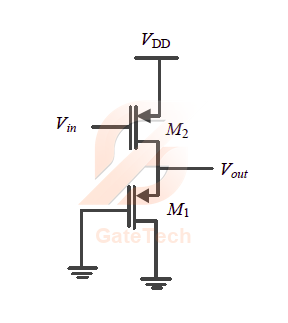

​​​​​​​In the circuit shown in the figure, the transistors M1M_{1} and M2M_{2} are operating in saturation. The channel length modulation coefficients of both the transistors are non-zero. The transconductance of the MOSFETs\text{MOSFETs} M1M_{1} and M2M_{2} are gm1g_{m1} and gm2g_{m2}, respectively, and the internal resistance of the MOSFETs\text{MOSFETs} M1M_{1} and M2M_{2} are r01r_{01} and r02r_{02}, respectively.

Ignoring the body effect, the ac\text{ac} small signal voltage gain (∂Vout/∂Vin)\left ( \partial V_{out}/\partial V_{in} \right ) of the circuit is

Choose one option
View answer

Answer: D

Worked explanation not available yet.
