GATE EC 2025 Set 1 Q37 — BJT and MOSFET Amplifiers

Explain with AI

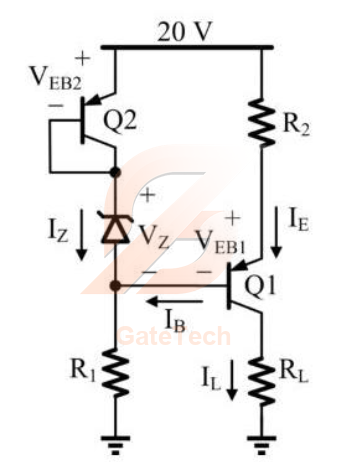

In the circuit shown, the identical transistors Q1\text{Q1} and Q2\text{Q2} are biased in the active region with β=120\beta=120. The Zener diode is in the breakdown region with VZ=5 V\mathrm{V}_{\mathrm{Z}}=5 \mathrm{~V} and IZ=25 mA\mathrm{I}_{\mathrm{Z}}=25 \mathrm{~mA}.

If IL=12 mA\mathrm{I}_{\mathrm{L}}=12 \mathrm{~mA} and VEB1=VEB2=0.7 V\mathrm{V}_{\mathrm{EB} 1}=\mathrm{V}_{\mathrm{EB} 2}=0.7 \mathrm{~V}, then the values of R1\mathrm{R}_{1} and R2\mathrm{R}_{2} (in kΩ\mathrm{k} \Omega, rounded off to one decimal place) are ________, respectively.

Choose one option
View answer

Answer: A

Worked explanation not available yet.
