GATE EC 2025 Set 1 Q33 — BJT and MOSFET Amplifiers

Explain with AI

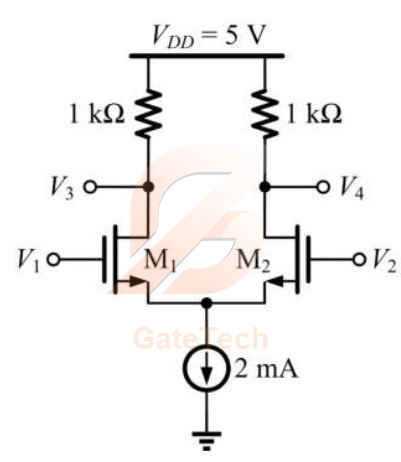

The identical MOSFETs M1M_{1} and M2M_{2} in the circuit given below are ideal and biased in the saturation region. M1\mathrm{M}_{1} and M2\mathrm{M}_{2} have a transconductance gmg_{m} of 55 mS.

The input signals (in Volts) are:
V1=2.5+0.01sin⁡ωtV2=2.5−0.01sin⁡ωt\begin{array}{l} V_{1}=2.5+0.01 \sin \omega t \\ V_{2}=2.5-0.01 \sin \omega t \end{array}

The output signal V3V_{3} (in Volts) is ______\_\_\_\_\_\_

Choose one option
View answer

Answer: D

Worked explanation not available yet.
