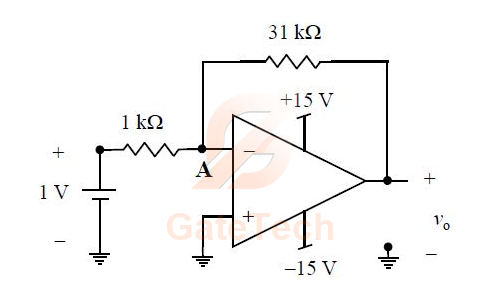

An op-amp based circuit is implemented as shown below.
In the above circuit, assume the op-amp to be ideal. The voltage (in volts, correct to one decimal place) at node , connected to the negative input of the op-amp as indicated in the figure is ________.
View answer
Answer: 0.4:0.6
Worked explanation not available yet.
