GATE EC 2017 Set 2 Q41 — BJT and MOSFET Amplifiers

Explain with AI

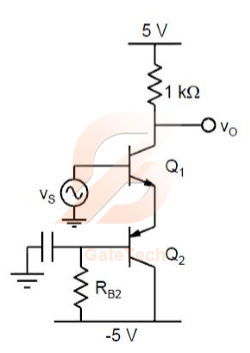

In the circuit shown, transistors Q1Q_1 and Q2Q_2 are biased at a collector current of 2.62.6 mA. Assuming that transistor current gains are sufficiently large to assume collector current equal to emitter current and thermal voltage of 2626 mV, the magnitude of voltage gain V0/VsV_0/V_s in the mid-band frequency range is __________(up to second decimal place).

View answer

Answer: 49.0:51.0

Worked explanation not available yet.
