Official PYQ · 2017

GATE EC 2017 Set 1 Q39 — BJT and MOSFET Amplifiers

Explain with AI

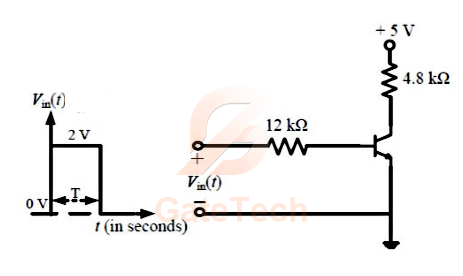

In the figure shown, the npnnpn transistor acts as a switch.

For the input Vin(t)V_{in}(t) as shown in the figure, the transistor switches between the cut-off and saturation regions of operation, when TT is large. Assume collector-to-emitter voltage at saturation VCE(sat)=0.2VV_{CE(sat)}=0.2V and base-to-emitter voltage VBE=0.7VV_{BE}=0.7V.The minimum value of the common-base current gain (α)(\alpha) of the transistor for the switching should be __________.

View answer

Answer: 0.89:0.91

Worked explanation not available yet.
