GATE EC 2016 Set 1 Q40 — Op-amp Circuits

Explain with AI

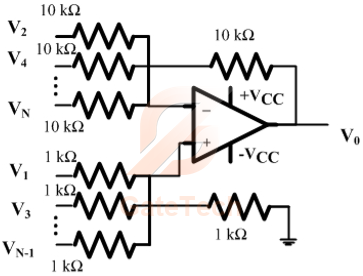

An ideal opamp has voltage sources V1,V3,V5,…,VN−1V_1, V_3, V_5, \dots, V_{N-1} connected to the non-inverting input and V2,V4,V6,…,VNV_2, V_4, V_6, \dots, V_N connected to the inverting input as shown in the figure below (+VCC=15(+V_{CC}= 15 volt, –VCC=–15– V_{CC} = – 15 volt). The voltages V1,V2,V3,V4,V5,V6,…V_1, V_2, V_3, V_4, V_5, V_6, \dots are 1,−1/2,1/3,−1/4,1/5,−1/6,…1, -1/2, 1/3, -1/4, 1/5, -1/6, \dots volt, respectively. As NN approaches infinity, the output voltage (in volt) is _________

View answer

Answer: 14.9:15.5

Worked explanation not available yet.
