GATE EC 2015 Set 3 Q40 — BJT and MOSFET Amplifiers

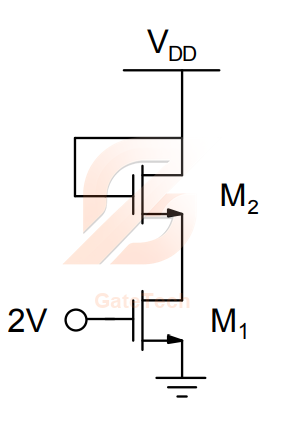

In the circuit shown, both the enhancement mode NMOS transistors have the following characteristics: $k_{n} ݇ = \mu _{n}C_{ox}(W/L) = 1\:mA/V^{2};V_{TN} = 1V.$ Assume that the channel length modulation parameter $\lambda$ is zero and body is shorted to source. The minimum supply voltage ܸ $V_{DD}$ (in volts) needed to ensure that transistor $M_{1}$ operates in saturation mode of operation is _______.

View answer

Answer: 2.9:3.1

Worked explanation not available yet.
