GATE EC 2015 Set 2 Q41 — Op-amp Circuits

Explain with AI

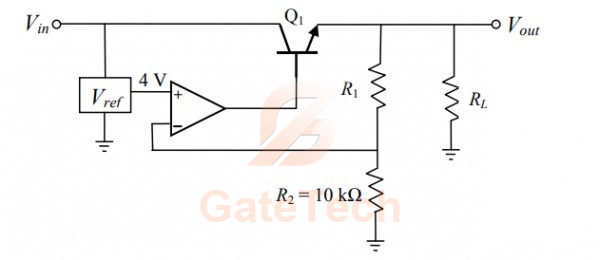

For the voltage regulator circuit shown, the input voltage (Vin)(V_{in}) is 20V±20%20 V \pm 20\% and the regulated output voltage (Vout)(V_{out}) is 10 V.10\: V. Assume the opamp to be ideal. For a load RLR_L drawing 200 mA,200\: mA, the maximum power dissipation in Q1 (in Watts)Q_{1}\:\text{(in Watts)} is ________.

View answer

Answer: 2.7:2.9

Worked explanation not available yet.
