GATE EC 2014 Set 1 Q37 — Op-amp Circuits

Explain with AI

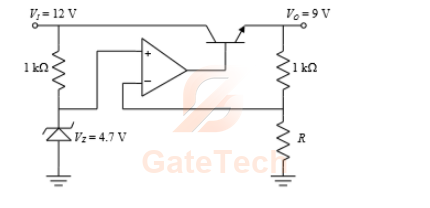

In the voltage regulator circuit shown in the figure, the op-amp is ideal. The BJT has VBE=0.7 VV_{BE} = 0.7\:V and β=100,\beta = 100, and the zener voltage is 4.7 V.4.7\:V. For a regulated output of 9 V,9\:V, the value of RR (in Ω)\Omega) is ______.

View answer

Answer: 1092:1094

Worked explanation not available yet.
