GATE EC 2006 Set 1 Q41 — Op-amp Circuits

Explain with AI

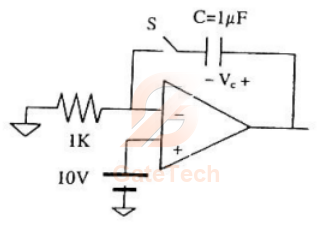

For the circuit shown in the following figure, the capacitor CC is initially uncharged. At t=0t=0, the switch SS is closed. The voltage VCV_{C} across the capacitor at t=1t=1 millisecond is



In the figure shown above, the OP AMP\text{OP AMP} is supplied with ±15 V\pm 15 \mathrm{~V} and the ground has been shown by the symbol ∇\nabla.

Choose one option
View answer

Answer: D

Worked explanation not available yet.
