Official PYQ · 2005Set 1 · Q55BJT and MOSFET AmplifiersMCQ1 mark

GATE EC 2005 Set 1 Q55 — BJT and MOSFET Amplifiers

GATE ECE 2005 | Question-55

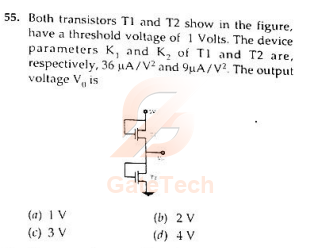

Both transistors $\mathrm{T} 1$ and $\mathrm{T} 2$ show in the figure, have a threshold voltage of $1$ Volts. The device parameters $\mathrm{K}_1$ and $\mathrm{K}_2$ of $\mathrm{T} 1$ and $\mathrm{T} 2$ are, respectively, $36 \; \mu \mathrm{A/V}^{2}$ and $9 \; \mu \mathrm{A} / \mathrm{V}^{2}$ . The output voltage $V_{0}$ is

View answer

Answer: D

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026
