GATE EC 2026 Set 1 Q55 — Diode Circuits

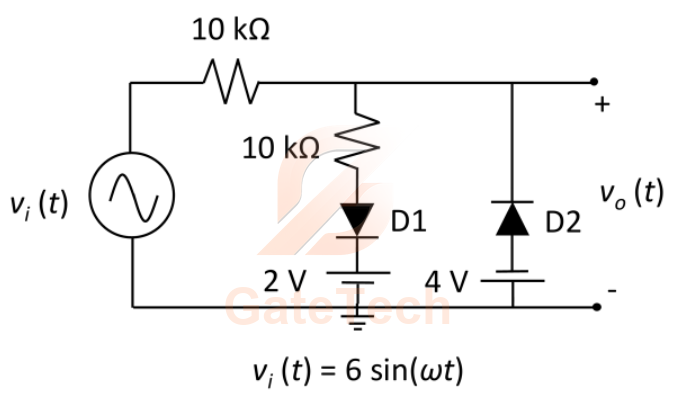

Consider the ideal diodes $\text{D1}$ and $\text{D2}$ as shown in the Figure with cut-in voltage $V_{\gamma}=0$ Volt and $v_{i}(t)$ is in Volt.

The maximum voltage (Volt) of the output $v_{o}(t)$ is $\_\_\_\_$ .
(rounded off to two decimal places)

View answer

Answer: 3.70:4.30

Worked explanation not available yet.
