Official PYQ · 2022Set 1 · Q47Diode CircuitsNAT2 marks

GATE EC 2022 Set 1 Q47 — Diode Circuits

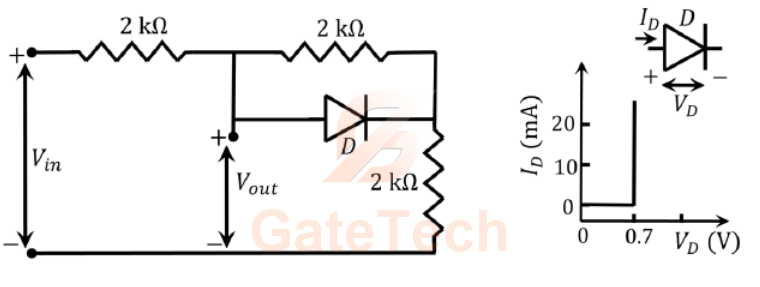

A circuit and the characteristics of the diode $\text{(D)}$ in it are shown. The ratio of the minimum to the maximum small signal voltage gain $\frac{\partial V_{\text{out}}}{\partial V_{\text{in}}}$ is ____________ (rounded off to two decimal places).

View answer

Answer: 0.70:0.80

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
