Official PYQ · 2025Set 1 · Q30Circuit AnalysisMCQ2 marks

GATE EC 2025 Set 1 Q30 — Circuit Analysis

The $Z$ -parameter matrix of a two port network relates the port voltages and port currents as follows:
$\left[\begin{array}{l} V_{1} \\ V_{2} \end{array}\right]=Z\left[\begin{array}{l} I_{1} \\ I_{2} \end{array}\right]$

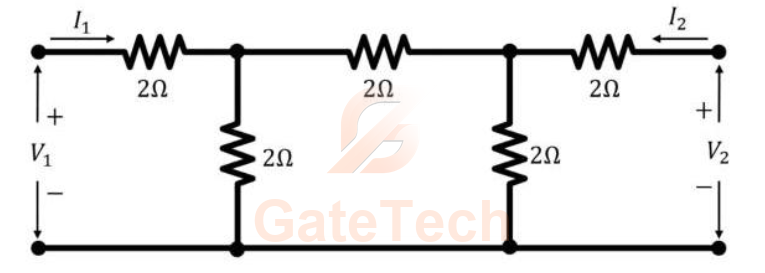

The $Z$ -parameter matrix (with each entry in Ohms) of the network shown below is $\_\_\_\_\_\_\_$

View answer

Answer: A

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
