GATE EC 2026 Set 1 Q29 — Circuit Analysis

Explain with AI

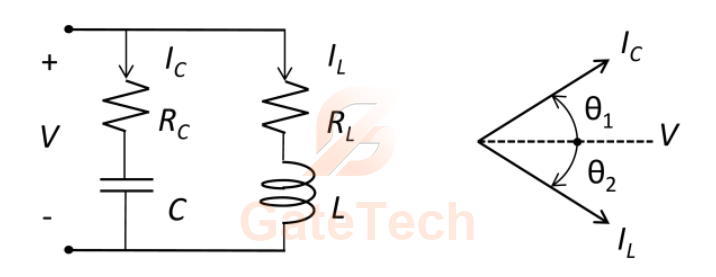

In the given circuit, L=1μHL=1 \mu \mathrm{H} and C=1μ FC=1 \mu \mathrm{~F}. The phasor diagram for ICI_{C} and ILI_{L} is also shown. Assume that the phase (θ1+θ2)\left(\theta_{1}+\theta_{2}\right) is 90∘90^{\circ} at a frequency of 159.15 kHz.159.15 ~\text{kHz}.

Among the following options, what is the nearest integer value of RC×RL?R_{C} \times R_{L}?

Choose one option
View answer

Answer: B

Worked explanation not available yet.
