GATE EC 2025 Set 1 Q29 — Circuit Analysis

Explain with AI

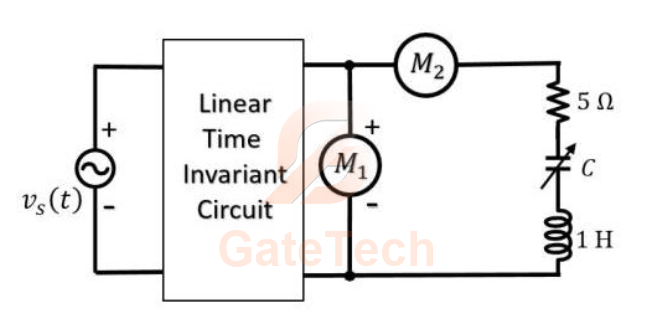

In the circuit below, M1M_{1} is an ideal AC voltmeter and M2M_{2} is an ideal AC ammeter. The source voltage (in Volts) is vs(t)=100cos⁡(200t)v_{s}(t)=100 \cos (200 t).

What should be the value of the variable capacitor CC such that the RMS readings on M1M_{1} and M2M_{2} are 25 V25 \: \mathrm{V} and 5 A5 \: \mathrm{A}, respectively?

Choose one option
View answer

Answer: A

Worked explanation not available yet.
