Official PYQ · 2025Set 1 · Q25Data ConvertersNAT1 mark

GATE EC 2025 Set 1 Q25 — Data Converters

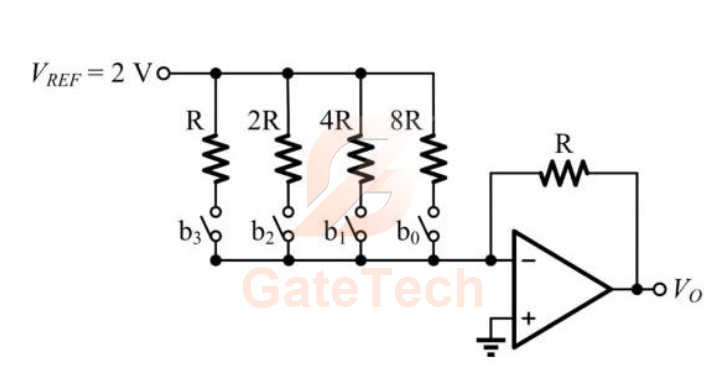

A $4$ -bit weighted-resistor DAC with inputs $b_{3}, b_{2}, b_{1}$ , and $b_{0}$ (MSB to LSB) is designed using an ideal opamp, as shown below. The switches are closed when the corresponding input bits are logic ' $l$ ' and open otherwise.

When the input $b_{3} b_{2} b_{1} b_{0}$ changes from $1110$ to $1101$ , the magnitude of the change in the output voltage $V_{O}$ (in mV , rounded off to the nearest integer) is $\_\_\_\_\_\_$

View answer

Answer: 250:250

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction

GATE EC · 2025Data Converters
A $10$ -bit analog-to-digital converter (ADC) has a sampling frequency of $1\: \mathrm{MHz}$ and a full scale voltage of $3.3 \: \mathrm{V}$ . For an input sinusoidal signal with frequency $500 \: \mathrm{kHz}$ , the maximum SNR (in $\mathrm{dB}$ , rounded off to two decimal places) and the data rate (in $\mathrm{Mbps}$ ) at the output of the ADC …
MCQ · 2 marks
GATE EC · 2024Data Converters
A full scale sinusoidal signal is applied to a $10$ -bit $\mathrm{ADC}$ . The fundamental signal component in the $\mathrm{ADC}$ output has a normalized power of $1 \mathrm{~W}$ , and the total noise and distortion normalized power is $10 \mu \mathrm{W}$ . The effective number of bits (rounded off to the nearest integer) of the $\mathrm{ADC}$ …
MCQ · 2 marks
GATE EC · 2023Data Converters
The signal-to-noise ratio $\mathrm{SNR}$ of an $\mathrm{ADC}$ with a full-scale sinusoidal input is given to be $61.96 \mathrm{~dB}$ . The resolution of the $\mathrm{ADC}$ is_____________bits (rounded off to the nearest integer).
NAT · 1 mark
GATE EC · 2023Data Converters
A sample and hold circuit is implemented using a resistive switch and a capacitor with a time constant of $1 \; \mu \mathrm{s}$ . The time for the sampling switch to stay closed to charge a capacitor adequately to a full scale voltage of $1 \mathrm{~V}$ with $12$ -bit accuracy is ___________ $\mu \mathrm{s}$ (rounded off to two decimal places).
NAT · 2 marks
GATE EC · 2021Data Converters
An $8$ -bit unipolar (all analog output values are positive) digital-to-analog converter $\text{(DAC)}$ has a full-scale voltage range from $0\; V$ to $7.68\:V$ . If the digital input code is $10010110$ (the leftmost bit is $\text{MSB}$ ), then the analog output voltage of the $\text{DAC}$ (rounded off to one decimal place) is ___________ $V$ .
NAT · 1 mark
GATE EC · 2020Data Converters
A $10$ -bit D/A converter is calibrated over the full range from $0$ to $10$ V. If the input to the D/A converter is $13 \:A$ (in hex), the output ( rounded off to three decimal places) is __________ $V$ .
NAT · 1 mark
