GATE EC 2024 Set 1 Q41 — Combinatorial Circuits

Explain with AI

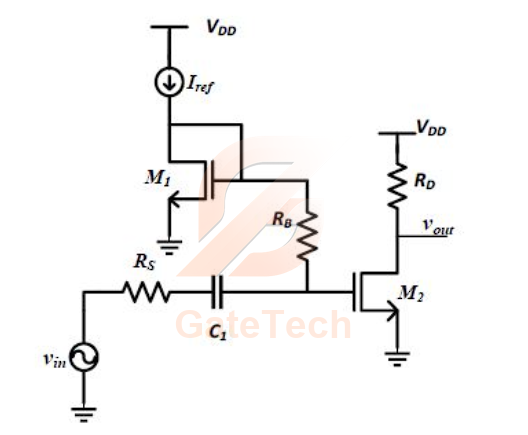

In the circuit shown below, the transistors M1M_{1} and M2M_{2} are biased in saturation. Their small signal transconductances are gm1g_{m 1} and gm2g_{m 2} respectively. Neglect body effect, channel length modulation and intrinsic device capacitances.





Assuming that capacitor C1C_{1} is a short circuit for AC\mathrm{AC} analysis, the exact magnitude of small signal voltage gain ∣vout vin ∣\left|\frac{v_{\text{out }}}{v_{\text{in }}}\right| is



Choose one option
View answer

Answer: B

Worked explanation not available yet.
