Official PYQ · 2024Set 1 · Q25Combinatorial CircuitsNAT1 mark

GATE EC 2024 Set 1 Q25 — Combinatorial Circuits

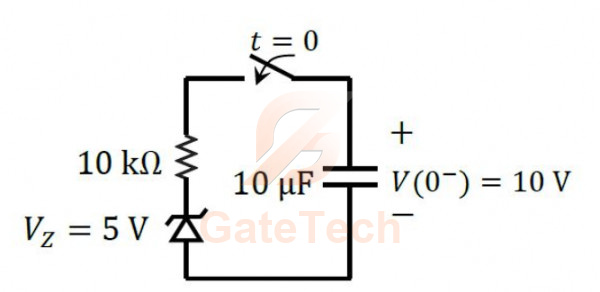

As shown in the circuit, the initial voltage across the capacitor is $10 \mathrm{~V}$ , with the switch being open. The switch is then closed at $t=0$ . The total energy dissipated in the ideal Zener diode $\left(V_{Z}=5 \mathrm{~V}\right)$ after the switch is closed (in $\mathrm{mJ}$ , rounded off to three decimal places) is $\_\_\_\_\_\_$ .

View answer

Answer: 0.250:0.250

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
