Official PYQ · 2022Set 1 · Q41Circuit AnalysisMSQ2 marks

GATE EC 2022 Set 1 Q41 — Circuit Analysis

Consider an $\text{FM}$ broadcast that employs the pre-emphasis filter with frequency response

$H_{pe}(\omega) = 1 + \frac{j \omega}{\omega_{0}},$

where $\omega_{0} = 10^{4} \; \text{rad/sec}.$

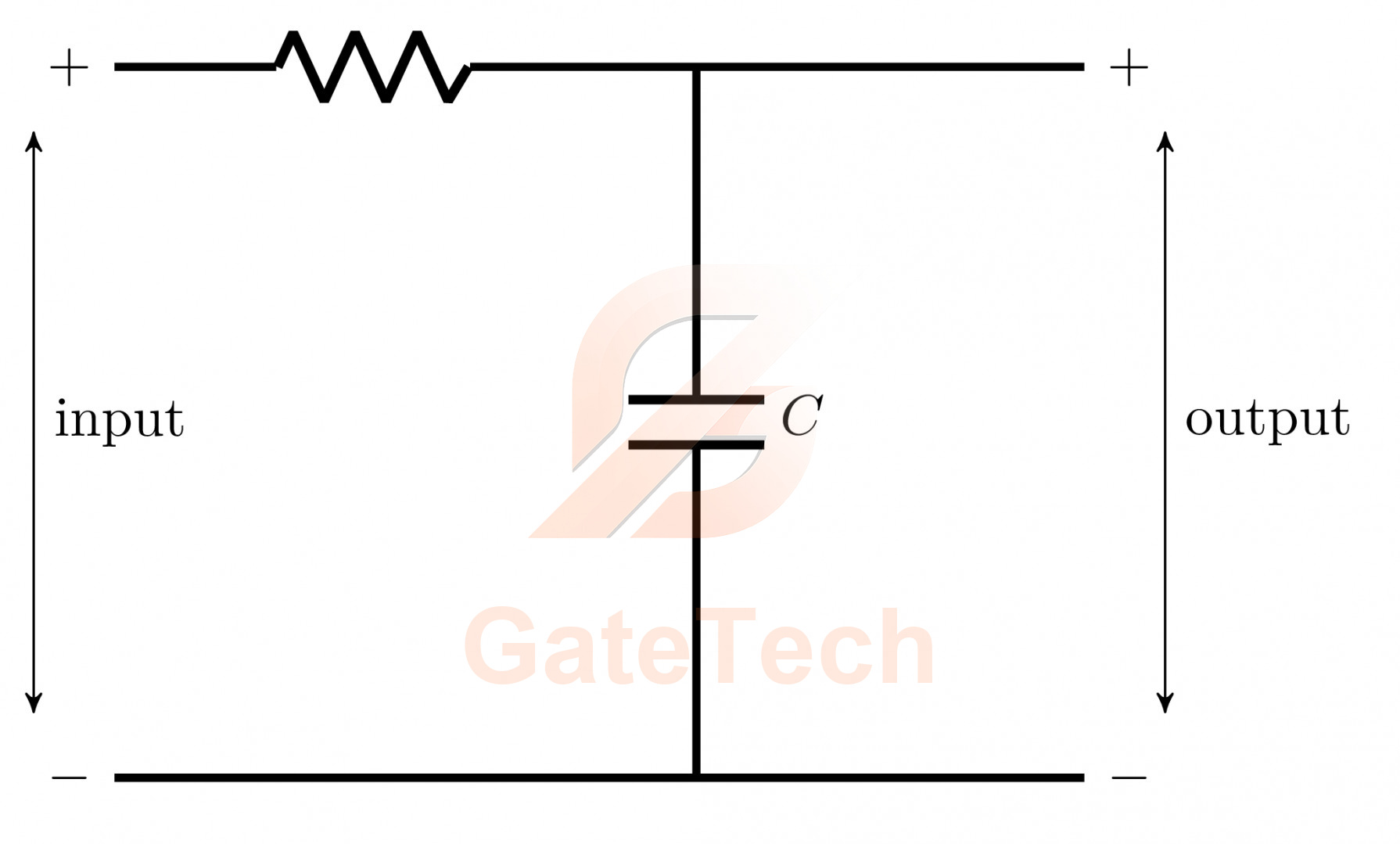

For the network shown in the figure to act as a corresponding de-emphasis filter, the appropriate pair(s) of $(R,C)$ values is/are _____________.

View answer

Answer: A

Worked explanation not available yet.
