Official PYQ · 2021Set 1 · Q43Diode CircuitsNAT2 marks

GATE EC 2021 Set 1 Q43 — Diode Circuits

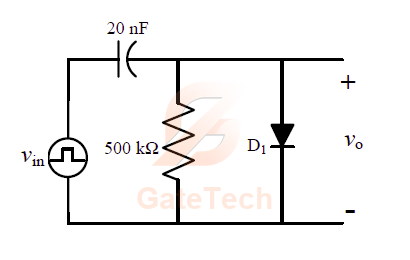

An asymmetrical periodic pulse train $v_{in}$ of $10\:V$ amplitude with on-time $T_{\text{ON}}=1\:ms$ and off-time $T_{\text{OFF}}=1\:\mu s$ is applied to the circuit shown in the figure. The diode $D_{1}$ is ideal.

The difference between the maximum voltage and minimum voltage of the output waveform $v_{o}$ (in integer) is ______________ $V$ .

View answer

Answer: 10:10

Worked explanation not available yet.
