Official PYQ · 2021Set 1 · Q38Circuit AnalysisNAT2 marks

GATE EC 2021 Set 1 Q38 — Circuit Analysis

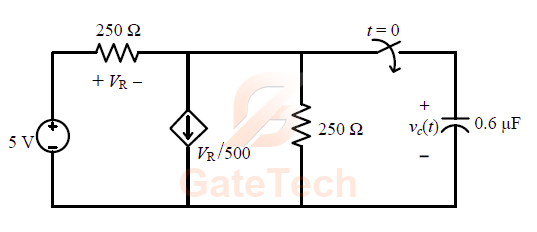

In the circuit shown in the figure, the switch is closed at time $t=0$ , while the capacitor is initially charged to $-5\:V$ (i.e., $v_{c}(0)=-5V$ ).

The time after which the voltage across the capacitor becomes zero (rounded off to three decimal places) is ________________ $\text{ms}$ .

View answer

Answer: 0.132:0.146

Worked explanation not available yet.
