Official PYQ · 2020Set 1 · Q15Circuit AnalysisNAT1 mark

GATE EC 2020 Set 1 Q15 — Circuit Analysis

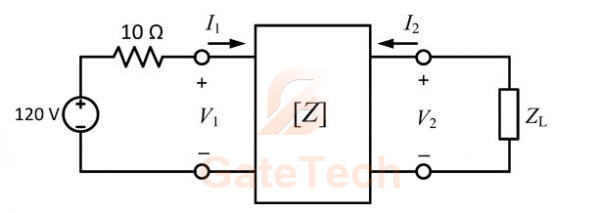

In the given circuit, the two-port network has the impedance matrix $\begin{bmatrix} Z \end{bmatrix}=\begin{bmatrix} 40 & 60\\ 60& 120 \end{bmatrix}$ . The value of $Z_{L}$ for which maximum power is transferred to the load is _____________ $\Omega$ .

View answer

Answer: 48:48

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
