GATE EC 2019 Set 1 Q4 — Circuit Analysis

Explain with AI

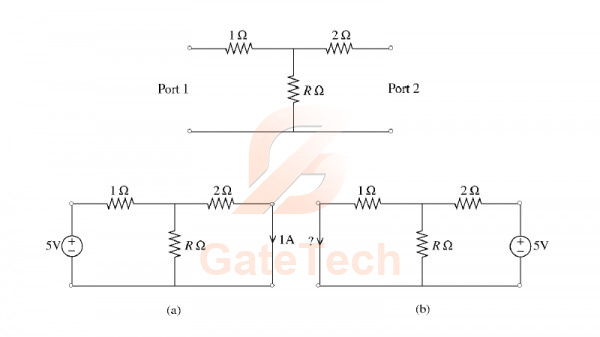

Consider the two-port resistive network shown in the figure. When an excitation of 5 V5\: V is applied across Port 11, and Port 22 is shorted, the current through the short circuit at Port 22 is measured to be 1 A1\: A (see (a) in the figure).

Now, if an excitation of 5 V5\: V is applied across Port 22, and Port 11 is shorted (see (b) in the figure), what is the current through the short circuit at Port 1?1?

Choose one option
View answer

Answer: B

Worked explanation not available yet.
