GATE EC 2018 Set 1 Q53 — Circuit Analysis

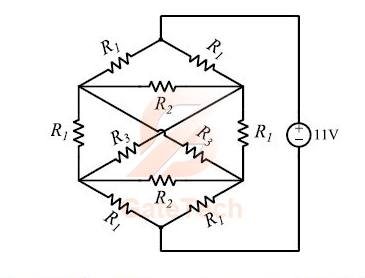

Consider the network shown below with $R_{1}=1\:\Omega,R_{2}=2\:\Omega$ and $R_{3}=3\:\Omega.$ The network is connected to a constant voltage source of $11\:V$ .

The magnitude of the current (in amperes, accurate to two decimal places ) through the source is _________.
