GATE EC 2018 Set 1 Q47 — Combinatorial Circuits

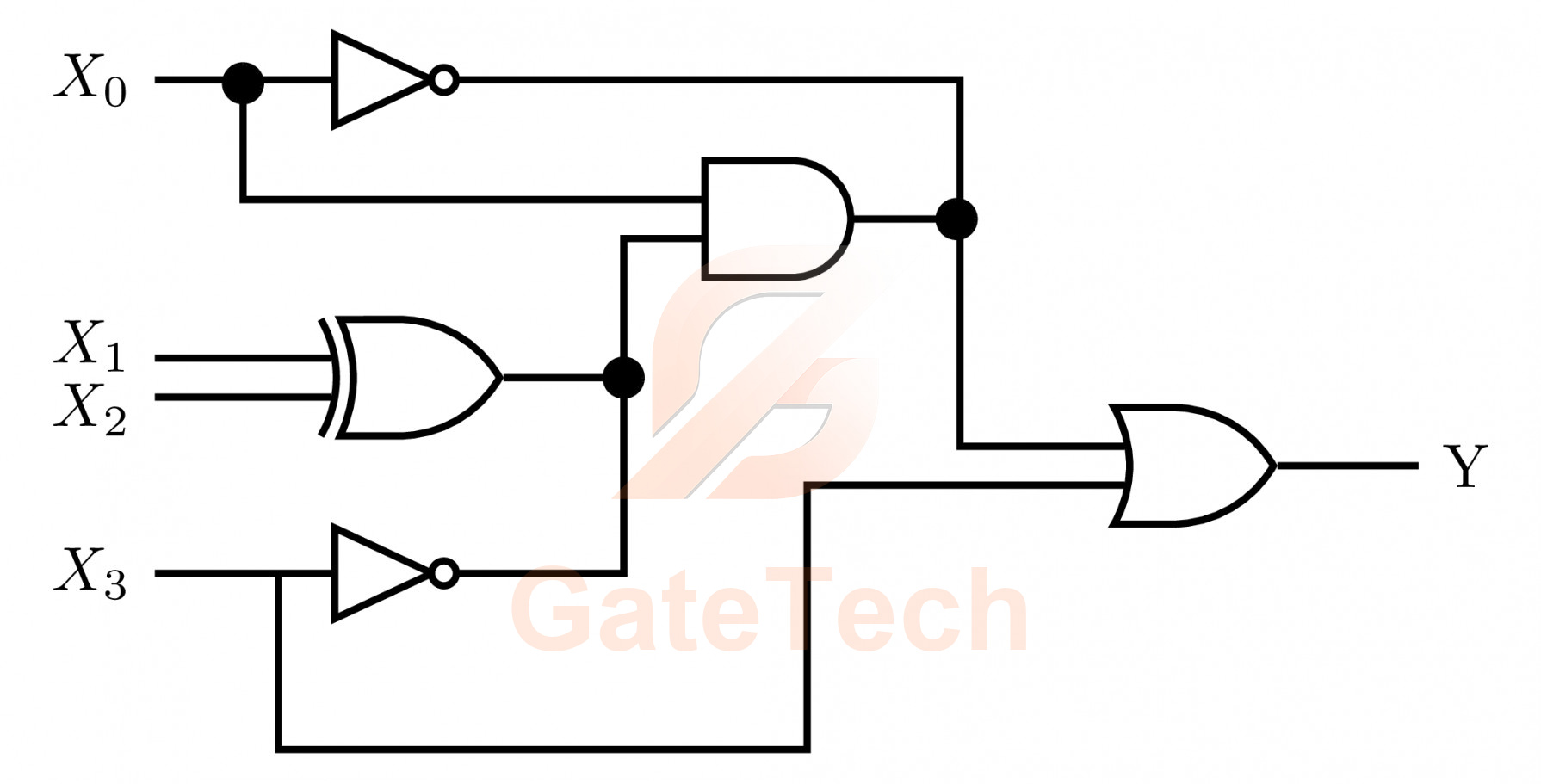

The logic gates shown in the digital circuit below use strong pull-down $\text{nMOS}$ transistors for LOW logic level at the outputs. When the pull-downs are off, high-value resistors set the output logic levels to HIGH (i.e. the pull-ups are weak). Note that some nodes are intentionally shorted to implement “wired logic”. Such shorted nodes will be HIGH only if the outputs of all the gates whose outputs are shorted are HIGH.

The number of distinct values of $X_{3}X_{2}X_{1}X_{0}$ (out of the $16$ possible values) that give $Y=1$ is ________.
