Official PYQ · 2018

GATE EC 2018 Set 1 Q25 — Circuit Analysis

Explain with AI

The ABCD\text{ABCD} matrix for a two-port network is defined by:

[V1I1]=[ABCD][V2−I2]\begin{bmatrix} V_{1}\\ I_{1} \end{bmatrix}=\begin{bmatrix} A &B \\ C& D \end{bmatrix}\begin{bmatrix} V_{2}\\ -I_{2} \end{bmatrix}

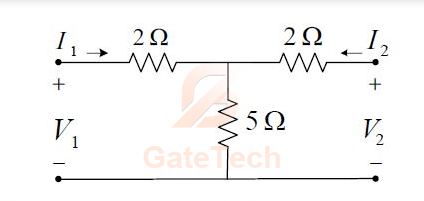

The parameter B\text{B} for the given two-port network (in ohms, correct to two decimal places) is _________.

View answer

Answer: 4.3:5.3

Worked explanation not available yet.
