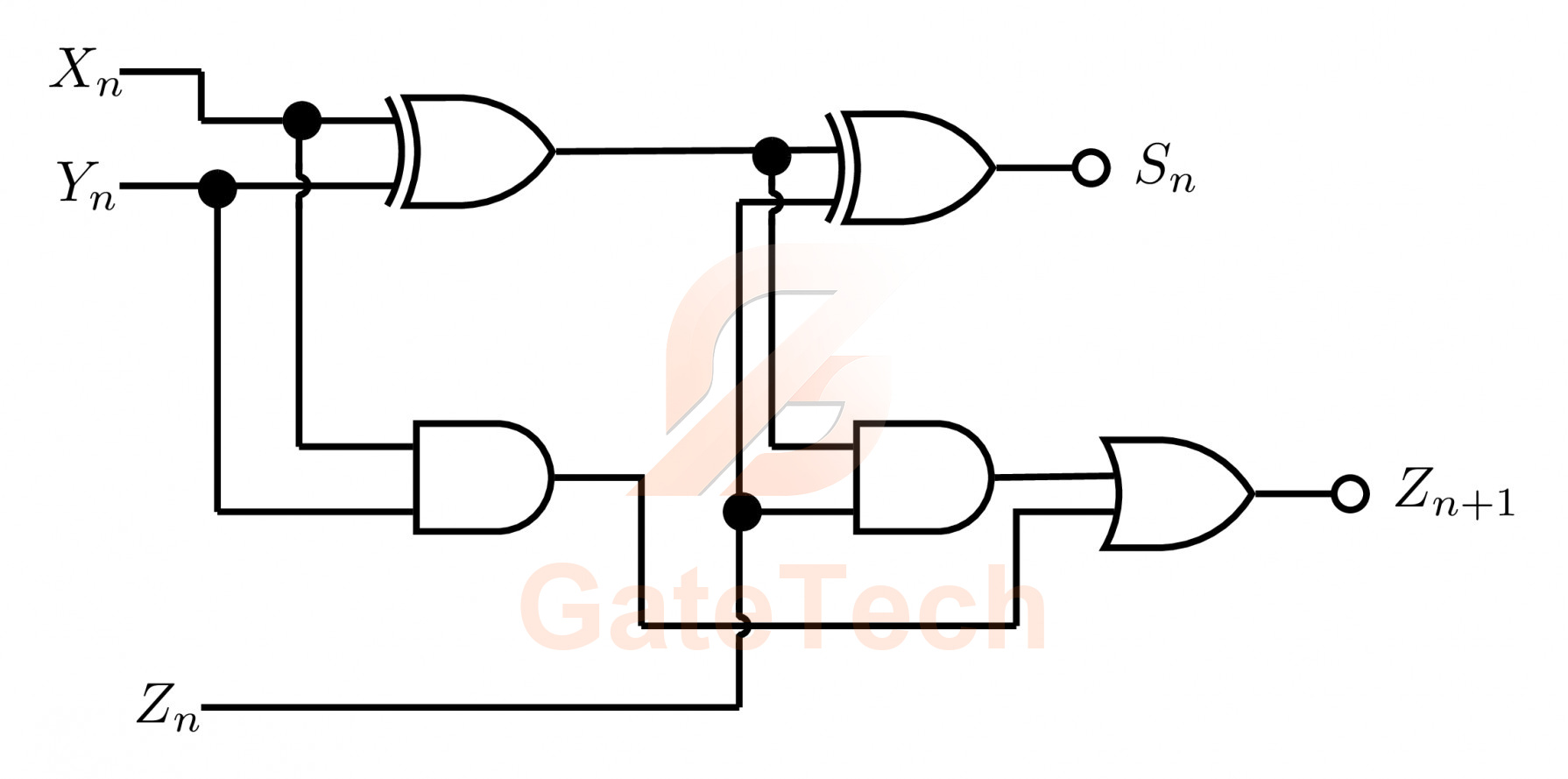

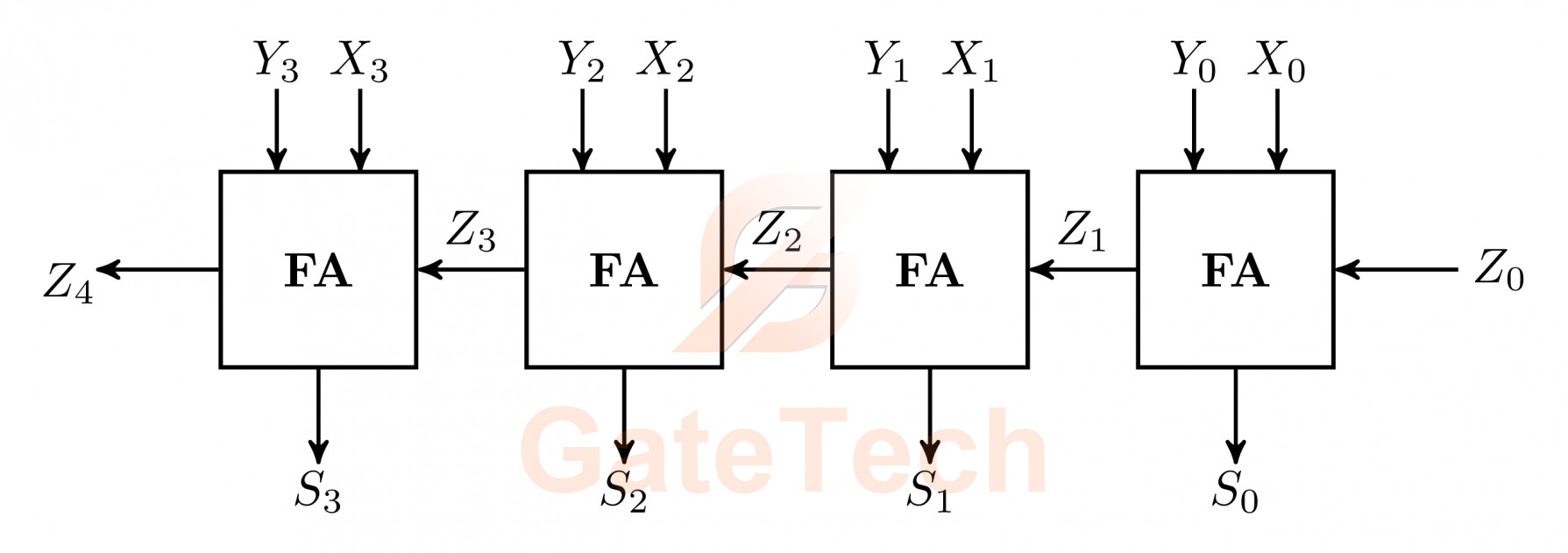

Figure Ⅰ shows a -bit ripple carry adder realized using full adders and Figure Ⅱ shows the circuit of a full-adder (FA). The propagation delay of the XOR, AND and OR gates in Figure Ⅱ are ns, ns and ns, respectively. Assume all the inputs to the -bit adder are initially reset to .
At , the inputs to the -bit adder are changed to , and . The output of the ripple carry adder will be stable at (in ns) = ___________
View answer
Answer: 50.0:50.0
Worked explanation not available yet.
