Official PYQ · 2016Set 2 · Q34Circuit AnalysisNAT2 marks

GATE EC 2016 Set 2 Q34 — Circuit Analysis

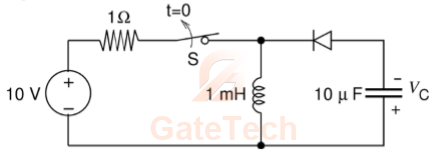

The switch $S$ in the circuit shown has been closed for a long time. It is opened at $t = 0$ and remains open after that. Assume that the diode has zero reverse current and zero forward voltage drop.

The steady state magnitude of the capacitor voltage $V_{c}$ (in volts) is ______

View answer

Answer: 99:101

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
