Official PYQ · 2015Set 2 · Q32Circuit AnalysisNAT2 marks

GATE EC 2015 Set 2 Q32 — Circuit Analysis

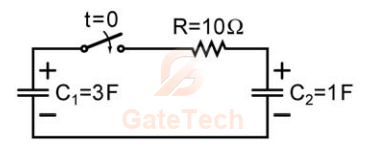

In the circuit shown, the initial voltages across the capacitors $C_{1}$ and $C_{2}$ are $1\: V$ and $3\: V,$ respectively. The switch is closed at time $t = 0$ . The total energy dissipated (in Joules) in the resistor $R$ until steady state is reached, is __________.

View answer

Answer: 1.4:1.6

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
