GATE EC 2014 Set 4 Q36 — Combinatorial Circuits

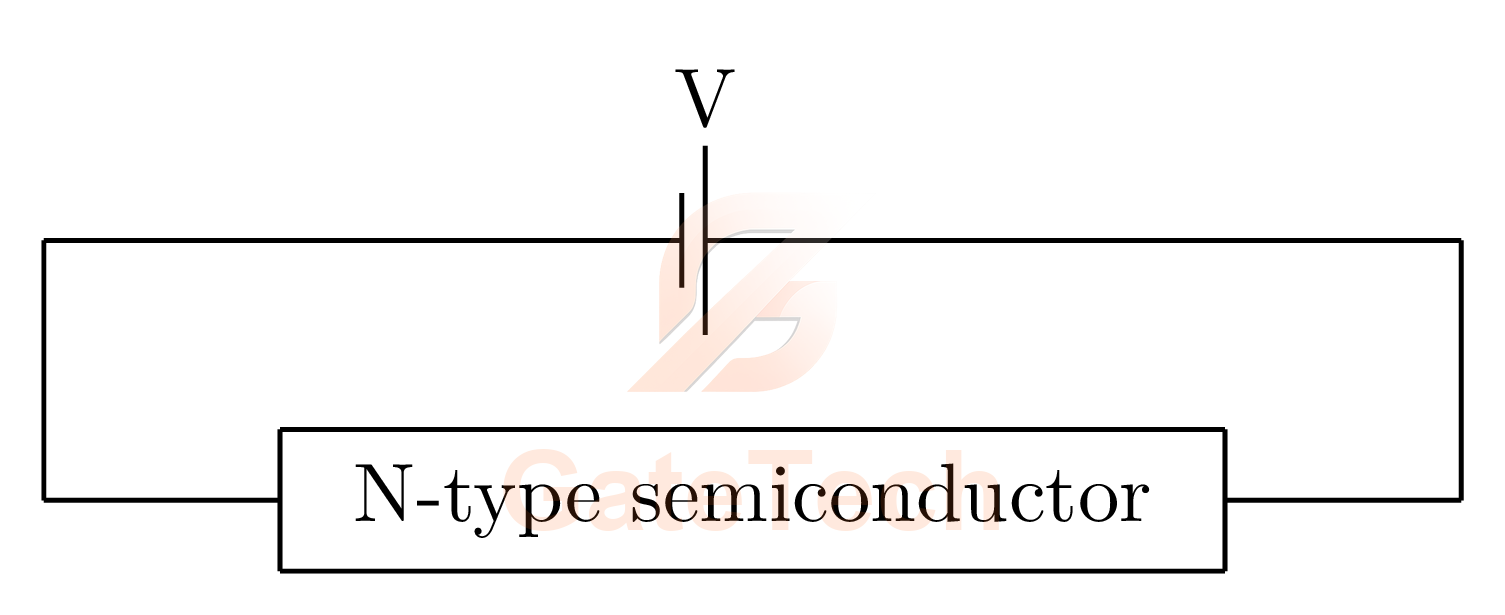

An N-type semiconductor having uniform doping is biased as shown in the figure.

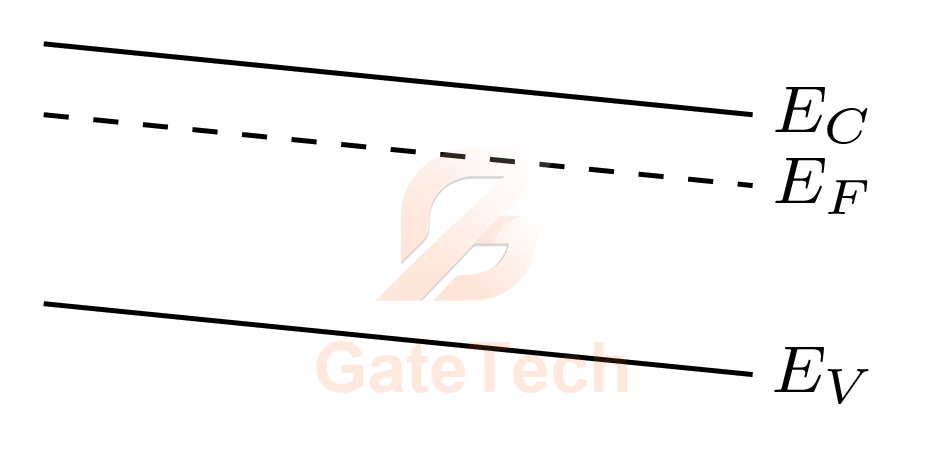

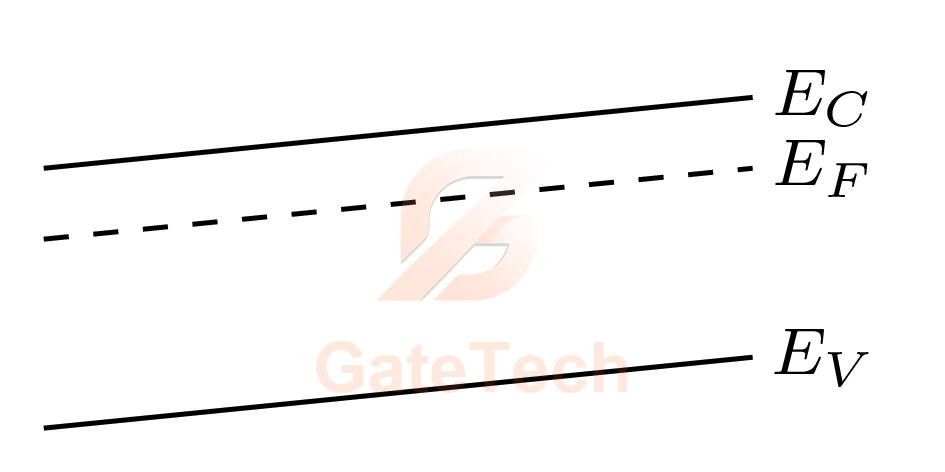

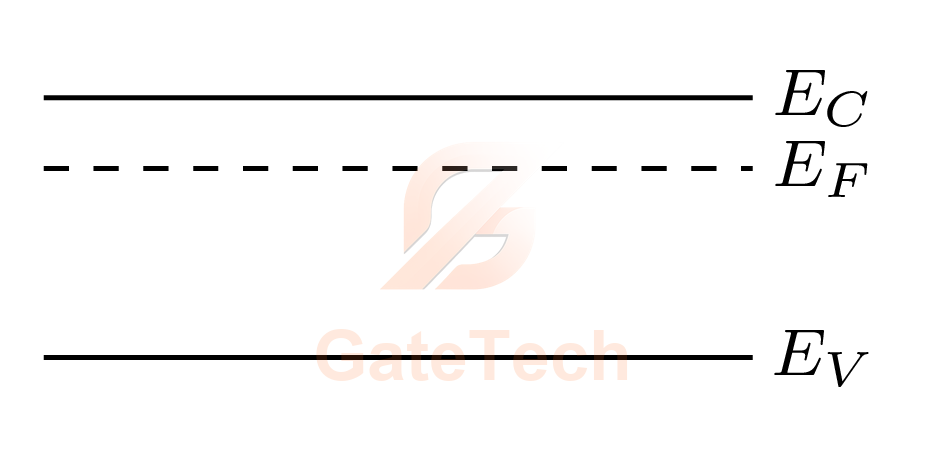

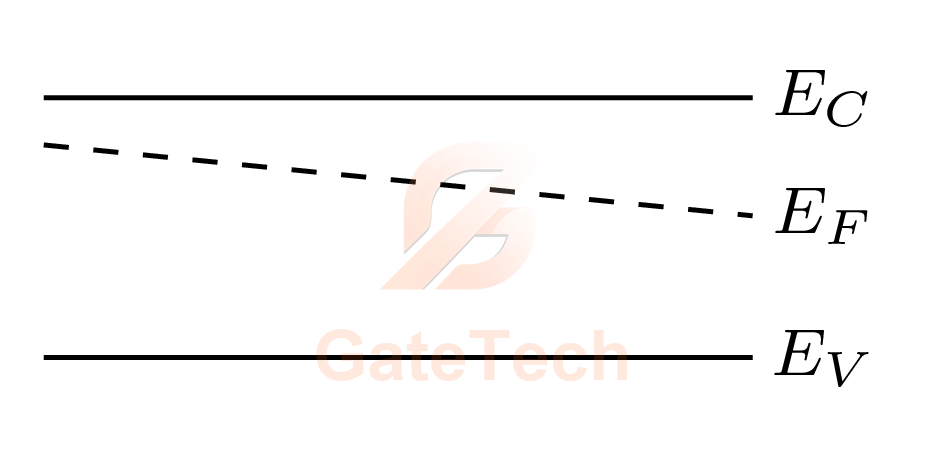

If $E_C$ is the lowest energy level of the conduction band, $E_V$ is the highest energy level of the valance band and $E_F$ is the Fermi level, which one of the following represents the energy band diagram for the biased N-type semiconductor?

View answer

Answer: D

Worked explanation not available yet.
