GATE EC 2004 Set 1 Q3 — Circuit Analysis

Explain with AI

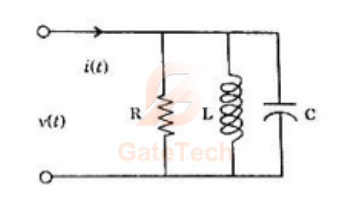

The circuit shown in in the figure, with R=13ΩR=\frac{1}{3} \Omega, L=14H,C=3 F\mathrm{L}=\frac{1}{4} \mathrm{H}, \mathrm{C}=3 \mathrm{~F} has input voltage v(t)=sin⁡2tv(t)=\sin 2 t. The resulting current i(t)i(t) is

Choose one option
View answer

Answer: A

Worked explanation not available yet.
