Official PYQ · 2024Set 2 · Q40Minimization (K-Maps etc.)MSQ2 marks

GATE CS 2024 Set 2 Q40 — Minimization (K-Maps etc.)

Consider $4$ -variable functions $f 1, f 2, f 3, f 4$ expressed in sum-of-minterms form as given below.
$\begin{array}{l} f 1=\sum(0,2,3,5,7,8,11,13) \\ f 2=\sum(1,3,5,7,11,13,15) \\ f 3=\sum(0,1,4,11) \\ f 4=\sum(0,2,6,13) \end{array}$

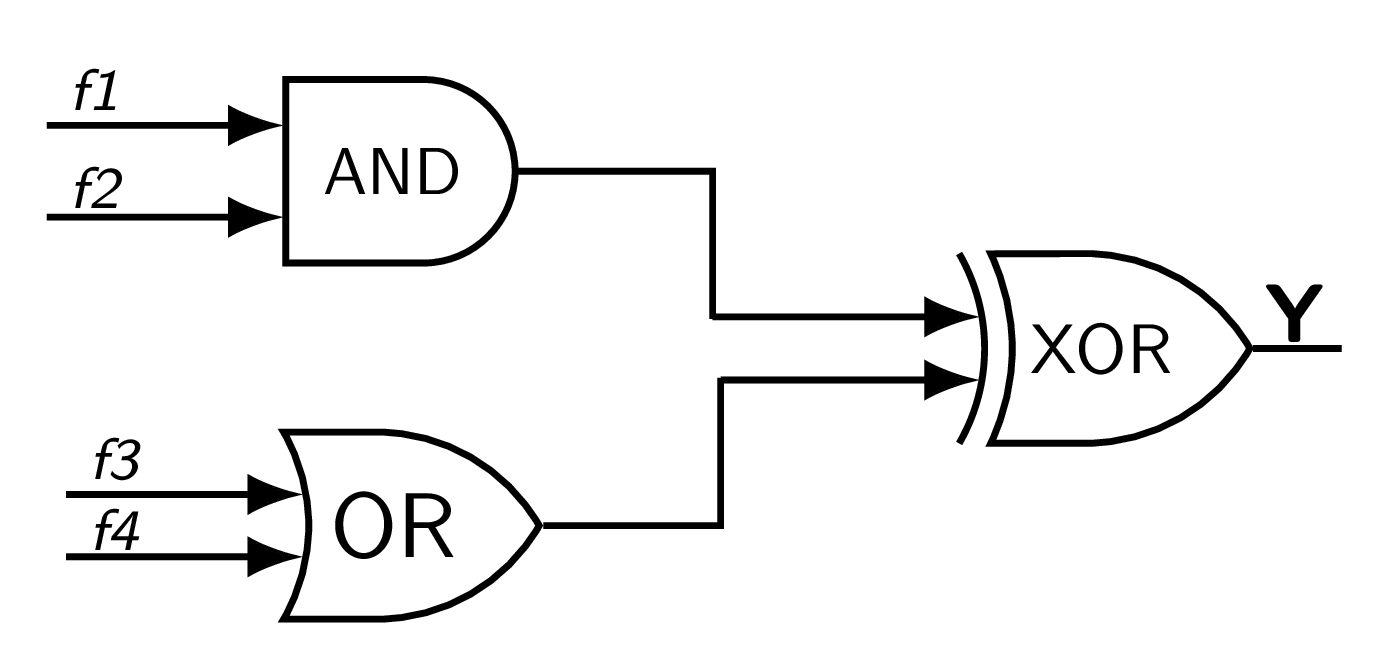

With respect to the circuit given above, which of the following options is/are CORRECT?

View answer

Answer: C;D

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
