GATE EC 2024 Set 1 Q28 — Control Systems

Explain with AI

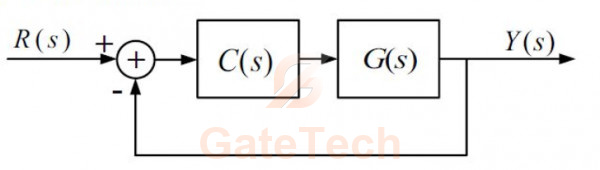

​​​​​A satellite attitude control system, as shown below, has a plant with transfer function G(s)=1s2G(s)=\frac{1}{s^{2}} cascaded with a compensator C(s)=K(s+α)s+4C(s)=\frac{K(s+\alpha)}{s+4}, where KK and α\alpha are positive real constants.



In order for the closed-loop system to have poles at −1±j3-1 \pm j \sqrt{3}, the value of α\alpha must be ______\_\_\_\_\_\_.



Choose one option
View answer

Answer: B

Worked explanation not available yet.
