Official PYQ · 2024

GATE EC 2024 Set 1 Q3 — Control Systems

Explain with AI

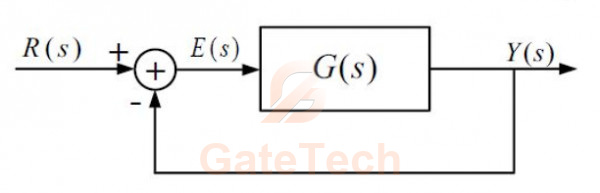

​​​In the feedback control system shown in the figure below G(s)=6s(s+1)(s+2)G(s)=\frac{6}{s(s+1)(s+2)}.

R(s), Y(s)\text{R(s), Y(s)}, and E(s)\text{E(s)} are the Laplace transforms of r(t),y(t)r(t), y(t), and e(t)e(t), respectively. If the input r(t)r(t) is a unit step function, then



Choose one option
View answer

Answer: D

Worked explanation not available yet.
