Official PYQ · 2023Set 1 · Q48LTI SystemsNAT2 marks

GATE EC 2023 Set 1 Q48 — LTI Systems

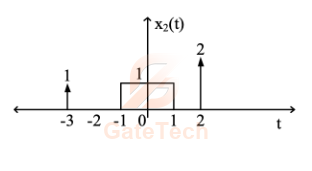

Let $\mathrm{x}_1(\mathrm{t})=\mathrm{u}(\mathrm{t}+1.5)-\mathrm{u}(\mathrm{t}-1.5)$ and $\mathrm{x}_2(\mathrm{t})$ is shown in the figure below. For $\mathrm{y}(\mathrm{t})=\mathrm{x}_1(\mathrm{t}) * \mathrm{x}_2(\mathrm{t})$ , the $\int_{-\infty}^{\infty} \mathrm{y}(\mathrm{t}) \mathrm{dt}$ is ______________ (rounded off to the nearest integer).

View answer

Answer: 15:15

Worked explanation not available yet.

Free practice · Your answers on this page are not saved.

Published 10 Oct 2026

Report a correction
